Timber-concrete composite floor

On this page you can find the following:



Strains

The sensors FBG 41 – FBG 46 are located in the TCC floor.



Location of the FBG sensors on the C storey



Displacement

The absolute displacement is measured with leveling and tachymetry. The measurement points in the the timber-concrete composite slab are labeled with the letter S.

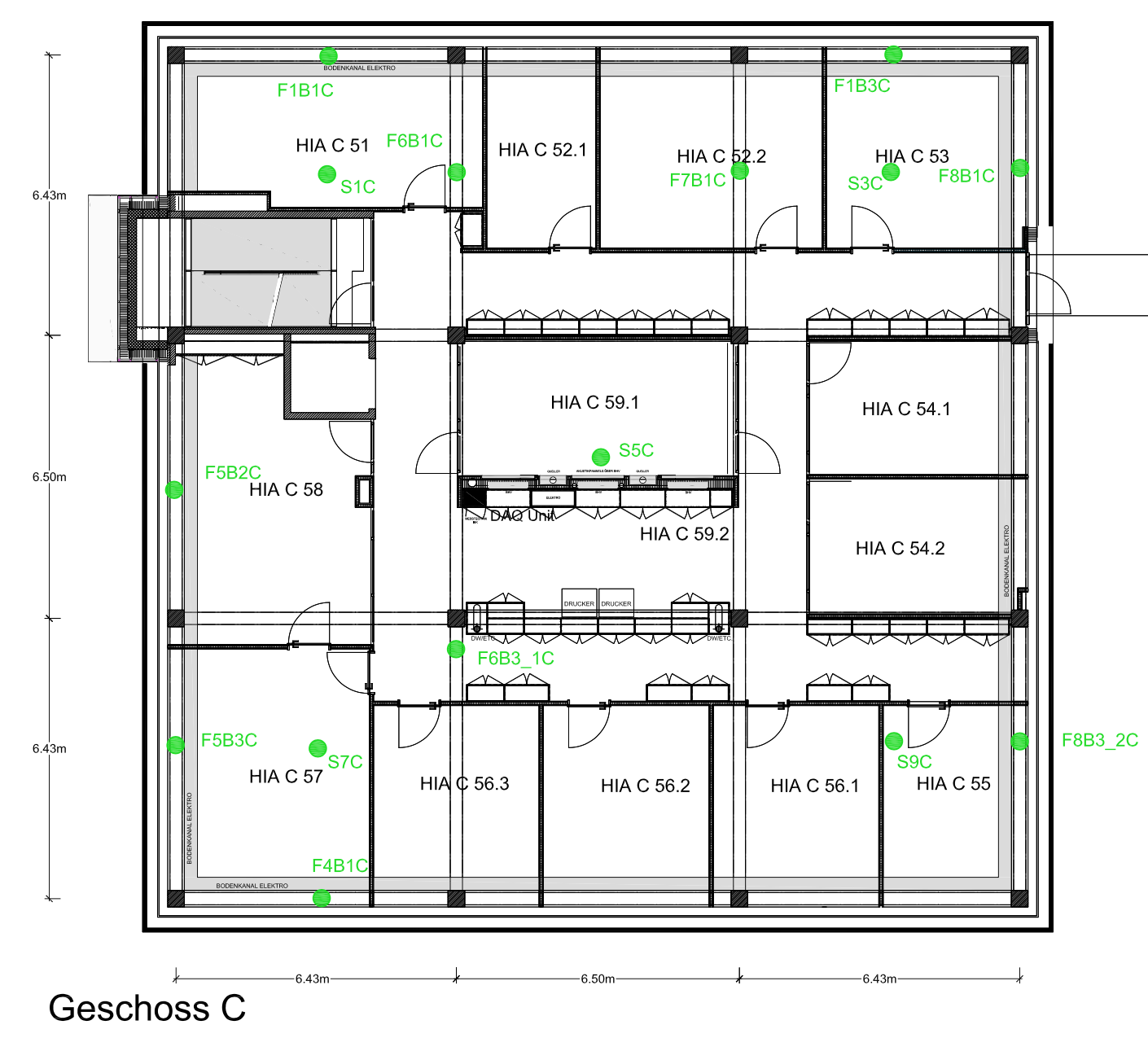

Location of the leveling points on the C storey


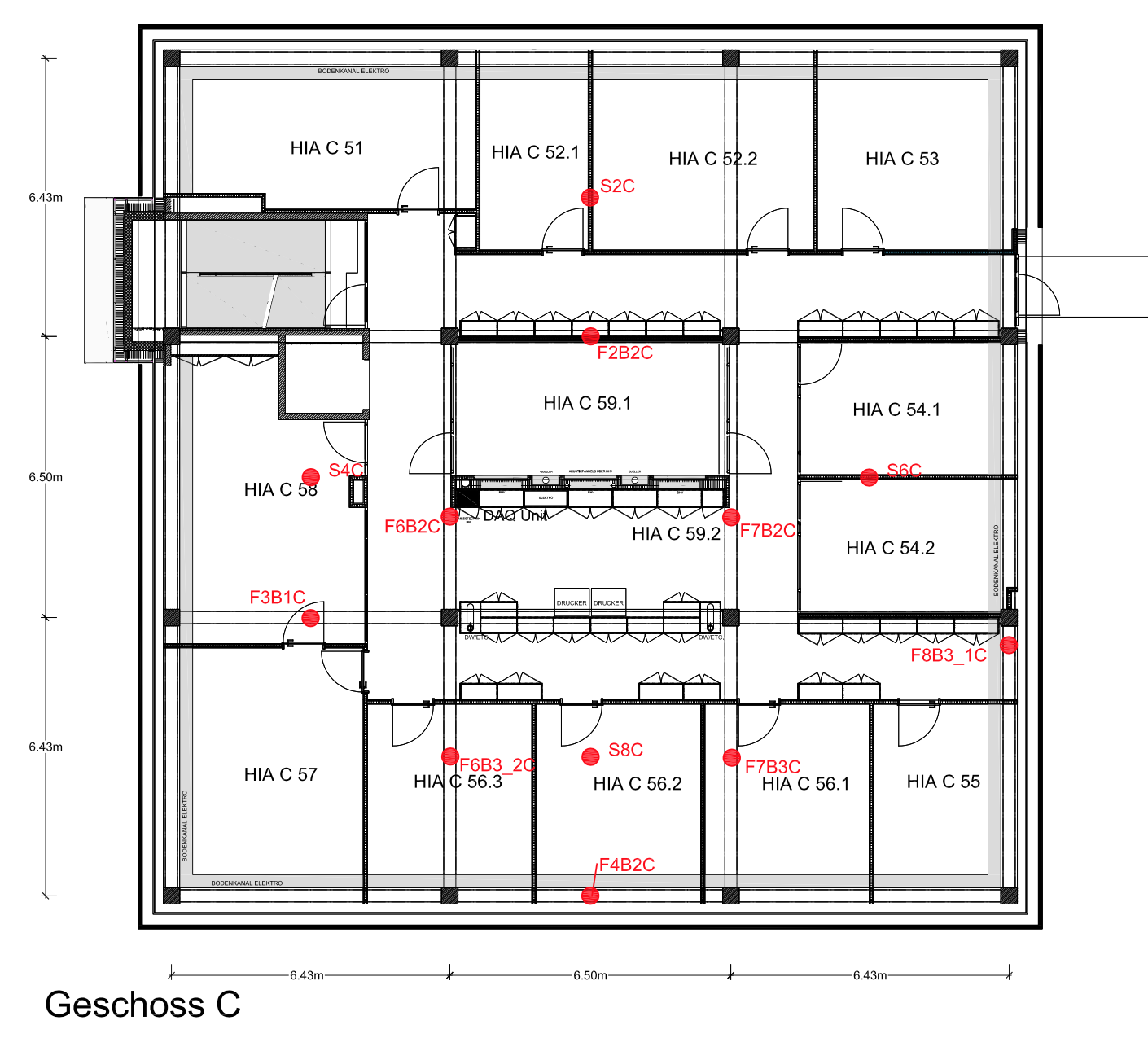

Location of the tachymetry points on the C storey



Relative displacement

The relative displacement in the horizontal and vertical direction between the timber and the concrete interface is measured with LVDT sensors.



Location of the LVDT sensors on the C storey
